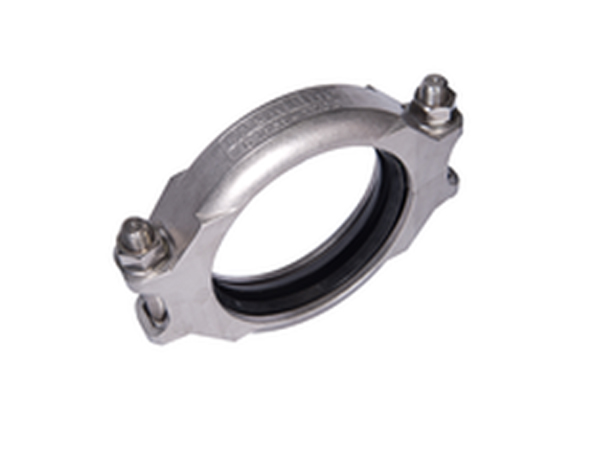

1200PSI Medium Pressure
The Model 1200PSI is designed for ultrahigh pressure applications including RO and desalination systems.
Request Quote DownloadCategories: Stainless Steel Couplings
Features & Benefits
- Sizes-Inches/DN:3/4 inch to 12 inch (DN20 to DN300)
- Rated Working Pressure:1200PSI (83bar)
- Bolts/Nuts – Round-head, square-neck, type 316 stainless steel bolts and heavy hex nuts conform to ASTM F-593, Nuts Material – Available in SS316 and Silicon Bronze
- Gaskets – EPDM rubber, suitable for cold water, hot water, rare acid, oil-free air and multiple chemical product (-50~150℃).It is not suitable for medium like petroleum.
- Gaskets are available in C shape and Flush shape
Housing material available in
- SuperDuplex SS (PREN>40), CE3MN, conforming to ASMT A995 Gr5A
- Duplex/Superduplex stainless steel type CE8MN, conforming to ASTM A-890 Grade 2A
- Duplex/Superduplex stainless steel type CD3MN, conforming to ASTM A995 Gr4A
- 316 stainless steel Grade CF8M, Conforming to ASTM A 351, A 743 & A 744.
- 304 stainless Steel
Specification
Note 1: Working pressure ratings based upon generally accepted pressure piping design standards and testing in accordance with ASME Section VIII Division 1 pressure vessel test method.

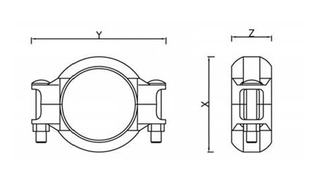

| Nominal / Size | Shape size | Kg | ||
|---|---|---|---|---|
| X | Y | Z | ||
| inch DN |
inch mm |
inch mm |
inch mm |
Lbs kg |
| 3/4 | 1.929 | 3.012 | 1.654 | 1.17 |
| DN20 | 49.00 | 76.50 | 42.00 | 0.53 |
| 1 | 2.260 | 3.429 | 1.654 | 1.23 |
| DN25 | 57.40 | 87.10 | 42.00 | 0.56 |
| 1-1/4 | 2.646 | 3.736 | 1.693 | 1.72 |
| DN32 | 67.20 | 94.90 | 43.00 | 0.78 |
| 1-1/2 | 3.071 | 4.213 | 1.724 | 2.03 |
| DN40 | 78.00 | 107.00 | 43.80 | 0.92 |
| OD57mm | 3.213 | 4.693 | 1.850 | 2.47 |
| 81.60 | 119.20 | 47.00 | 1.12 | |
| 2 | 3.331 | 4.803 | 1.850 | 2.69 |
| DN50 | 84.60 | 122.00 | 47.00 | 1.22 |
| 2-1/2 | 4.016 | 5.520 | 1.850 | 3.17 |
| DN65 | 102.00 | 140.20 | 47.00 | 1.44 |
| OD76.1mm | 4.138 | 5.650 | 1.850 | 3.53 |
| 105.10 | 143.50 | 47.00 | 1.60 | |
| 3 | 4.724 | 6.299 | 1.850 | 4.19 |
| DN80 | 120.00 | 160.00 | 47.00 | 1.90 |
| OD108mm | 5.669 | 7.559 | 2.051 | 5.64 |
| 144.00 | 192.00 | 52.10 | 2.56 | |
| 4 | 5.906 | 7.795 | 2.051 | 6.39 |
| DN100 | 150.00 | 198.00 | 52.10 | 2.90 |
| OD133mm | 6.890 | 8.858 | 2.051 | 7.72 |
| 175.00 | 225.00 | 52.10 | 3.50 | |
| 5 | 7.165 | 9.134 | 2.051 | 8.60 |
| DN125 | 182.00 | 232.00 | 52.10 | 3.90 |
| OD159mm | 7.992 | 10.354 | 2.051 | 10.96 |
| 203.00 | 263.00 | 52.10 | 4.97 | |
| 6 | 8.346 | 10.787 | 2.051 | 11.46 |
| DN150 | 212.00 | 274.00 | 52.10 | 5.20 |
| 8 | 10.472 | 13.031 | 2.480 | 24.69 |
| DN200 | 266.00 | 331.00 | 63.00 | 11.20 |
| 10 | 12.992 | 15.276 | 2.559 | 33.95 |
| DN250 | 330.00 | 388.00 | 65.00 | 15.40 |
| 12 | 15.039 | 17.559 | 2.638 | 44.75 |
| DN300 | 382.00 | 446.00 | 67.00 | 20.30 |
